PRINCIPLE OF MEASUREMENT

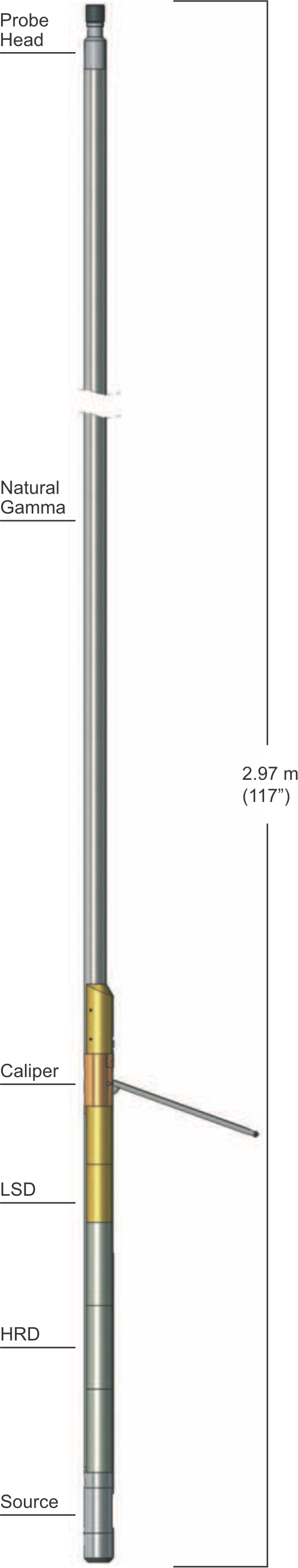

The source and detectors are held in contact with the borehole wall by a spring-loaded caliper arm measuring diameter for borehole compensation. Gamma radiation from the source is back-scattered (Compton effect) in the formation, reaching the detectors where the relative counts are measured using sodium iodide scintillation detectors. Calibration constants are determined using a water tank and an aluminium block which has previously undergone a primary calibration. The calibration constants are combined with the gamma counts and diameter readings in the supplied software to give a calibrated density in g/cc.
